DZ03QI(600Lbs)

Tel:+86-577-62517028
Email:htdz@chinahongtai.com
Skype:htdzlock

Electromagnetic locks are widely used in important buildings,become vital parts in the high technology access control system.Compared with traditional locks,this series locks have high holding force,low power consumption,stable quality,monitor signal feedback,noiseless,anti-theft and meet the fire safety requirement

Our silicon steel sheet uses non-remanence and imported fireproofing material.In order to keep the steady of working,adopt low power and surge protection. Four mounting holes design increase the fixing force.The export-oriented electromagnetic locks have convenient wire hole and terminal.We also provide special installation brackets to confront kinds of environment.For the appearance of locks, Hongtai insists on high technological requirements,use anodic oxidation surface treatment,electroplating etc

There have more than 40 "Hongtai" electromagnetic locks,60kgs to 500kgs are available for your choice

Technical Parameters
600Lbs Flush Type EM Lock with Signal Feedback
Lock size:L248.0*W47.0*H27.5mm
Holding force:600Lbs(280kgs)
Working voltage:DC12V
Working current:
280mA
Professional device:surge absorber
Suitable for:metal door,wooden door,fireproof door
Security type:fail safe type(without power,it unlock)
Weight:2.2kgs

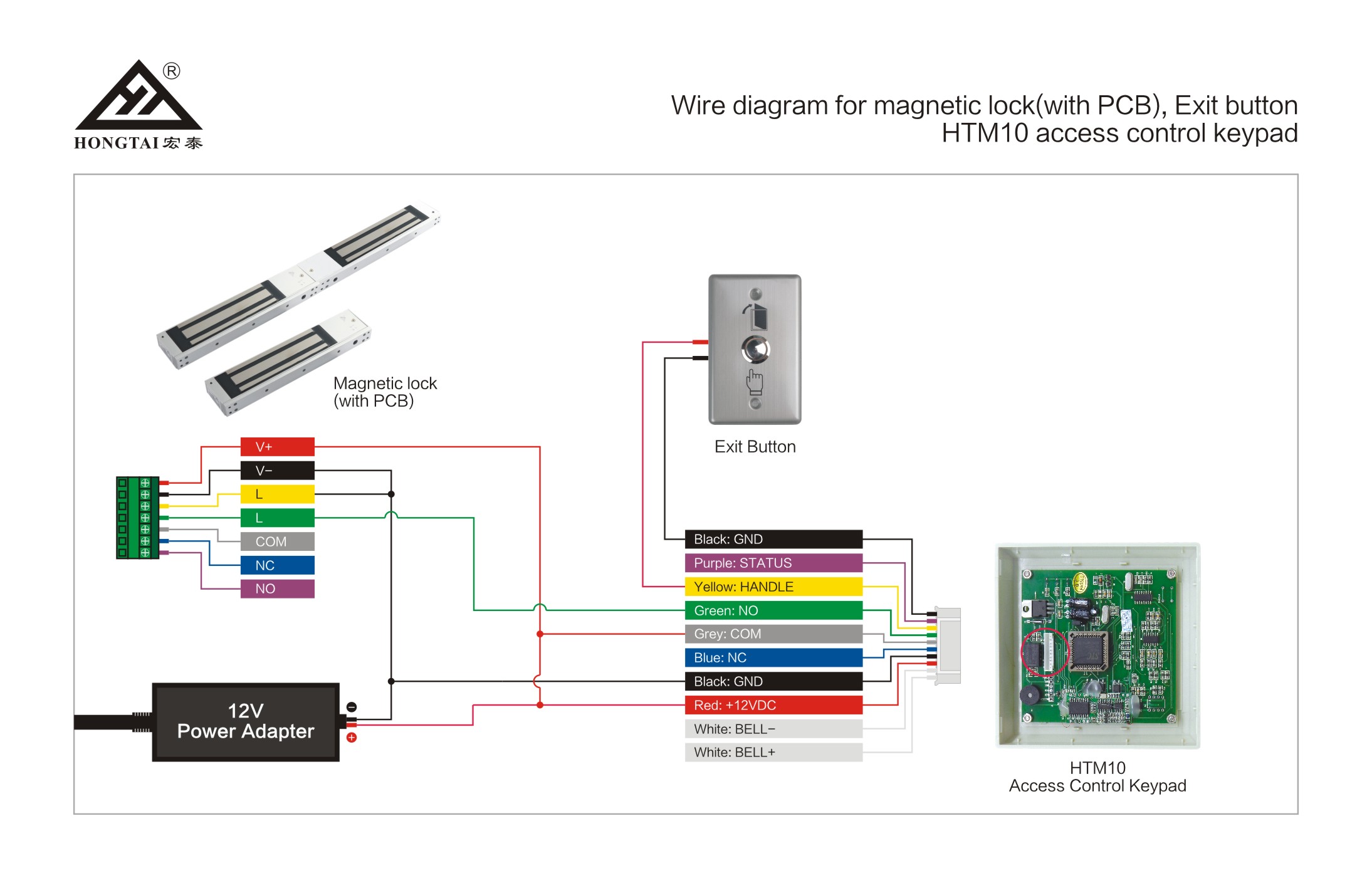

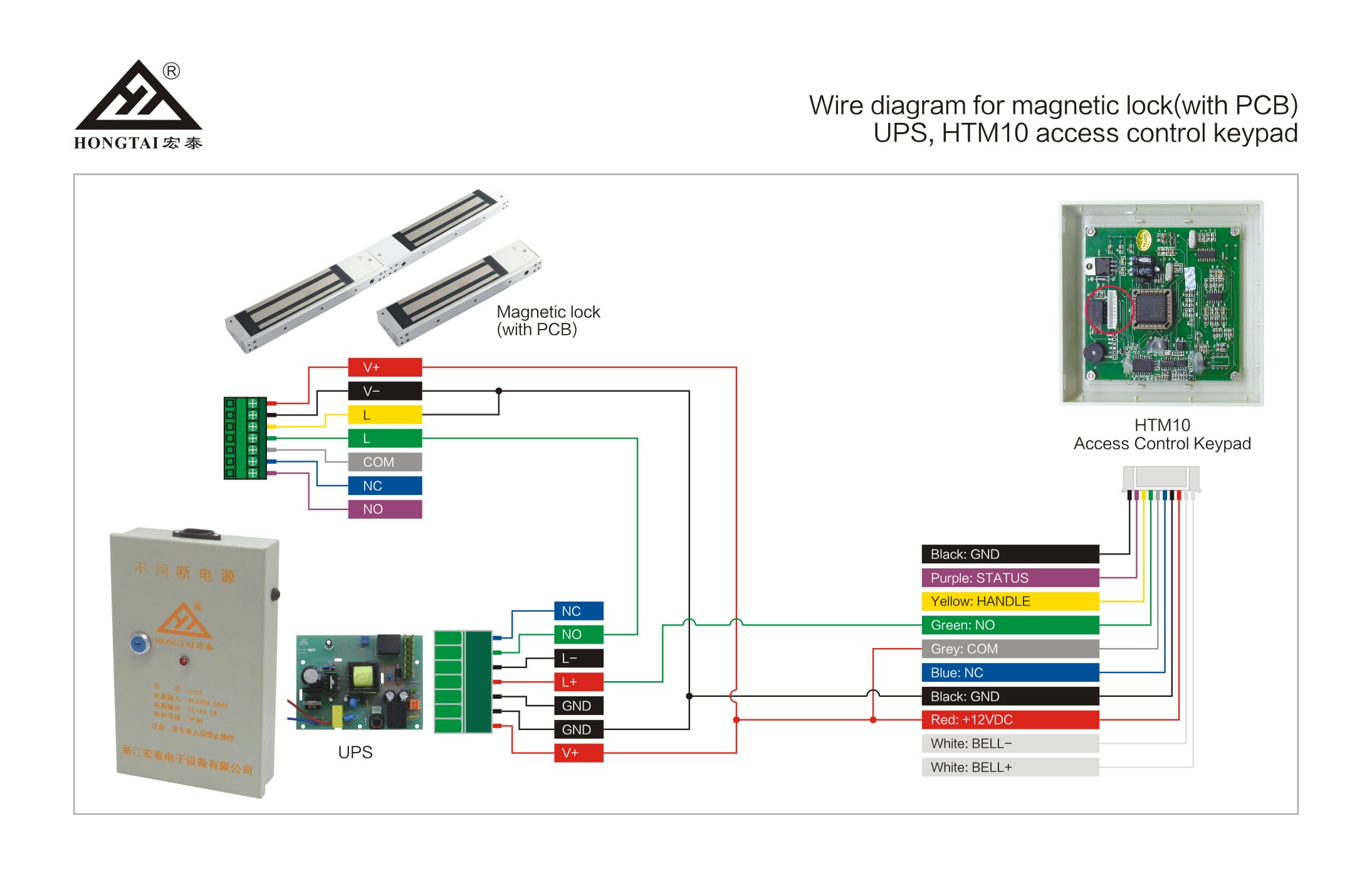

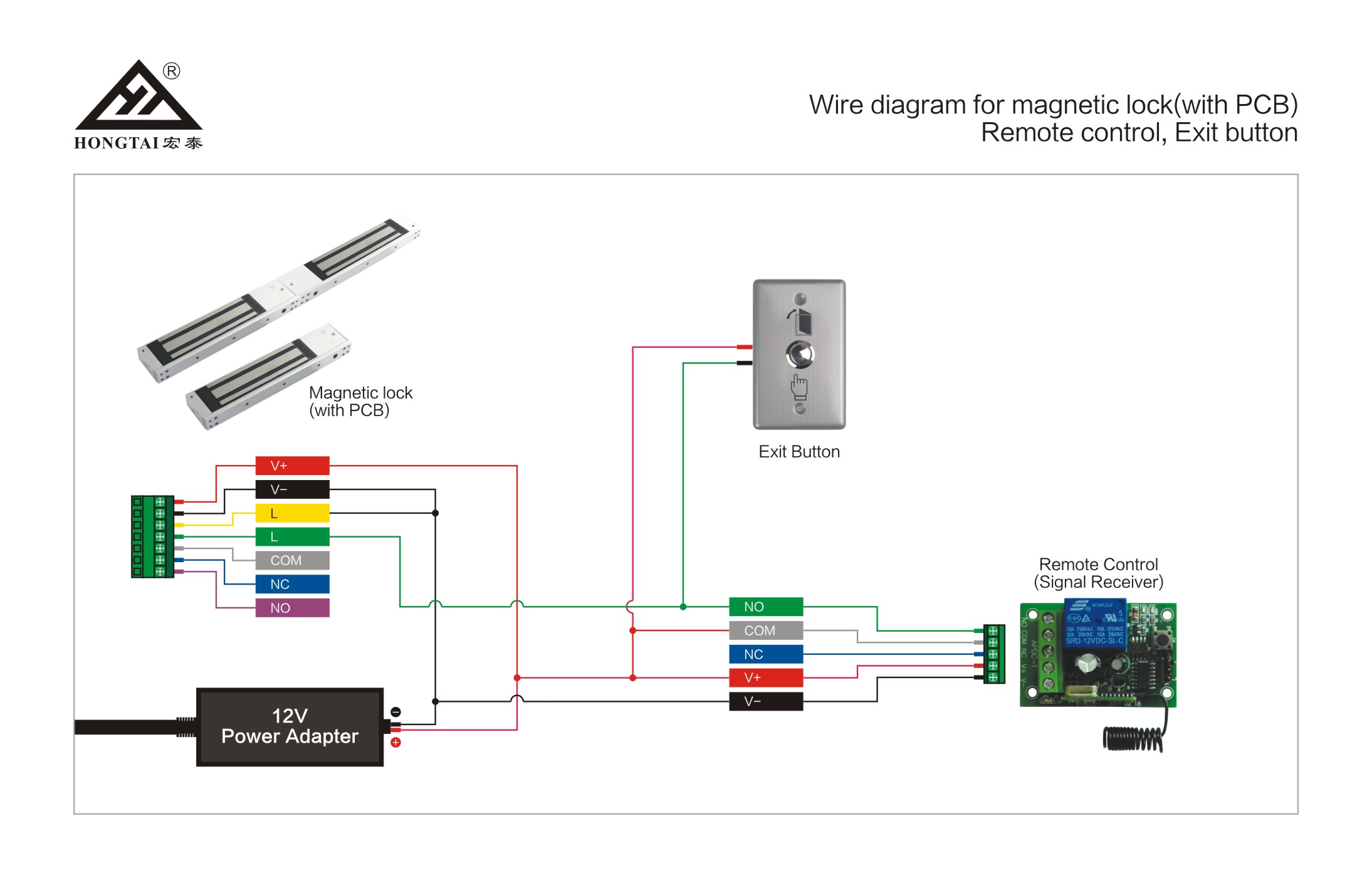

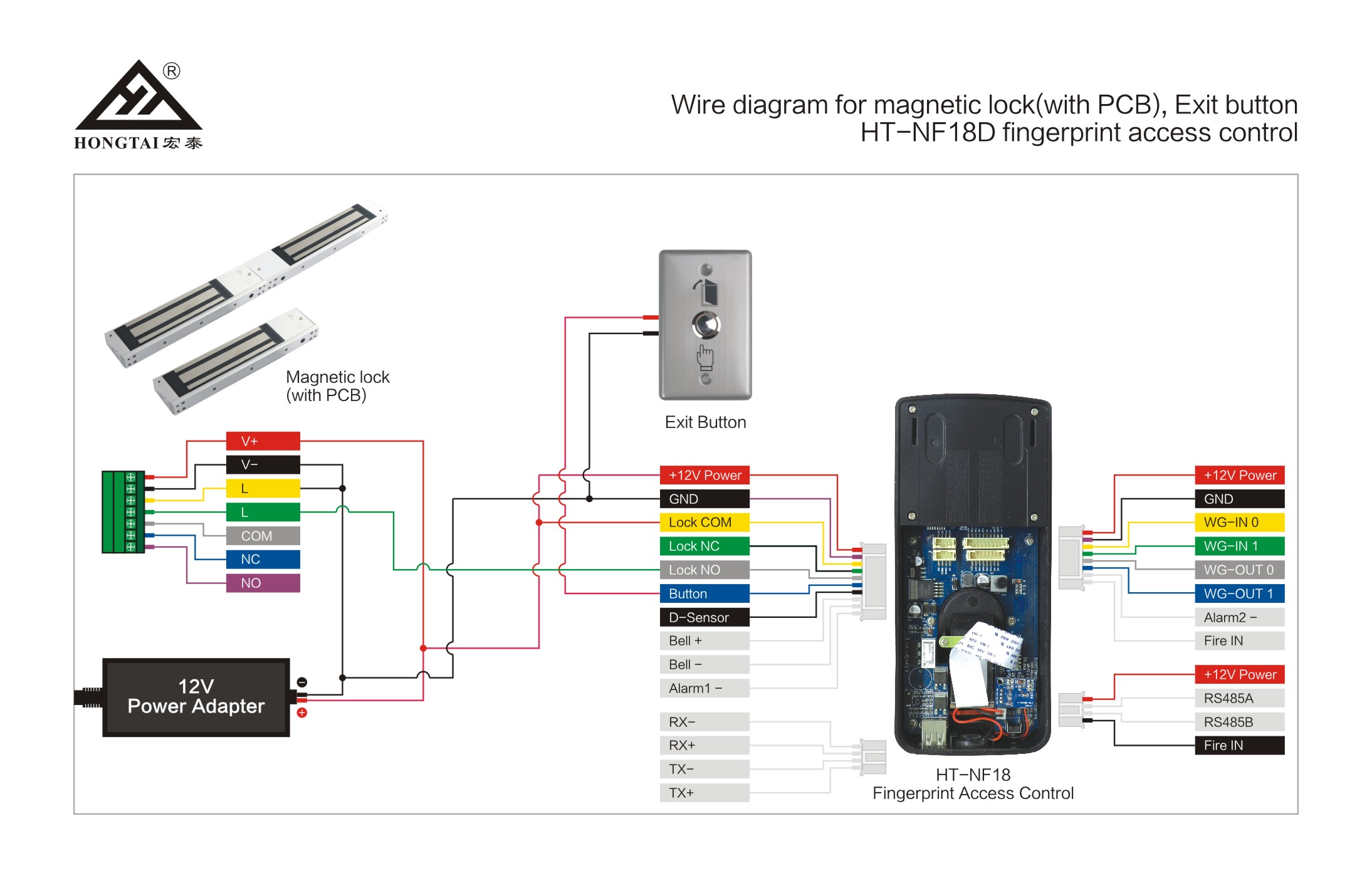

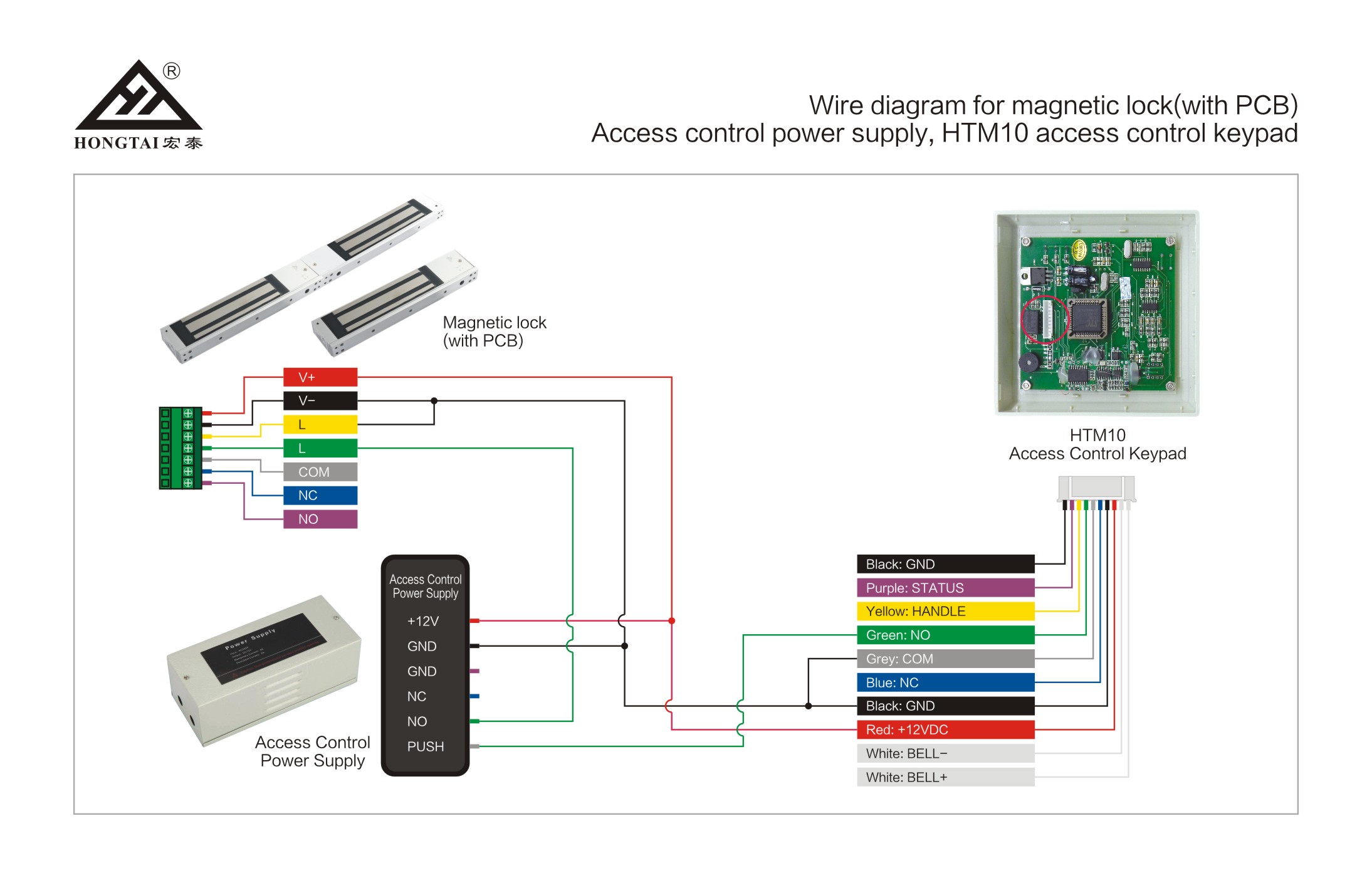

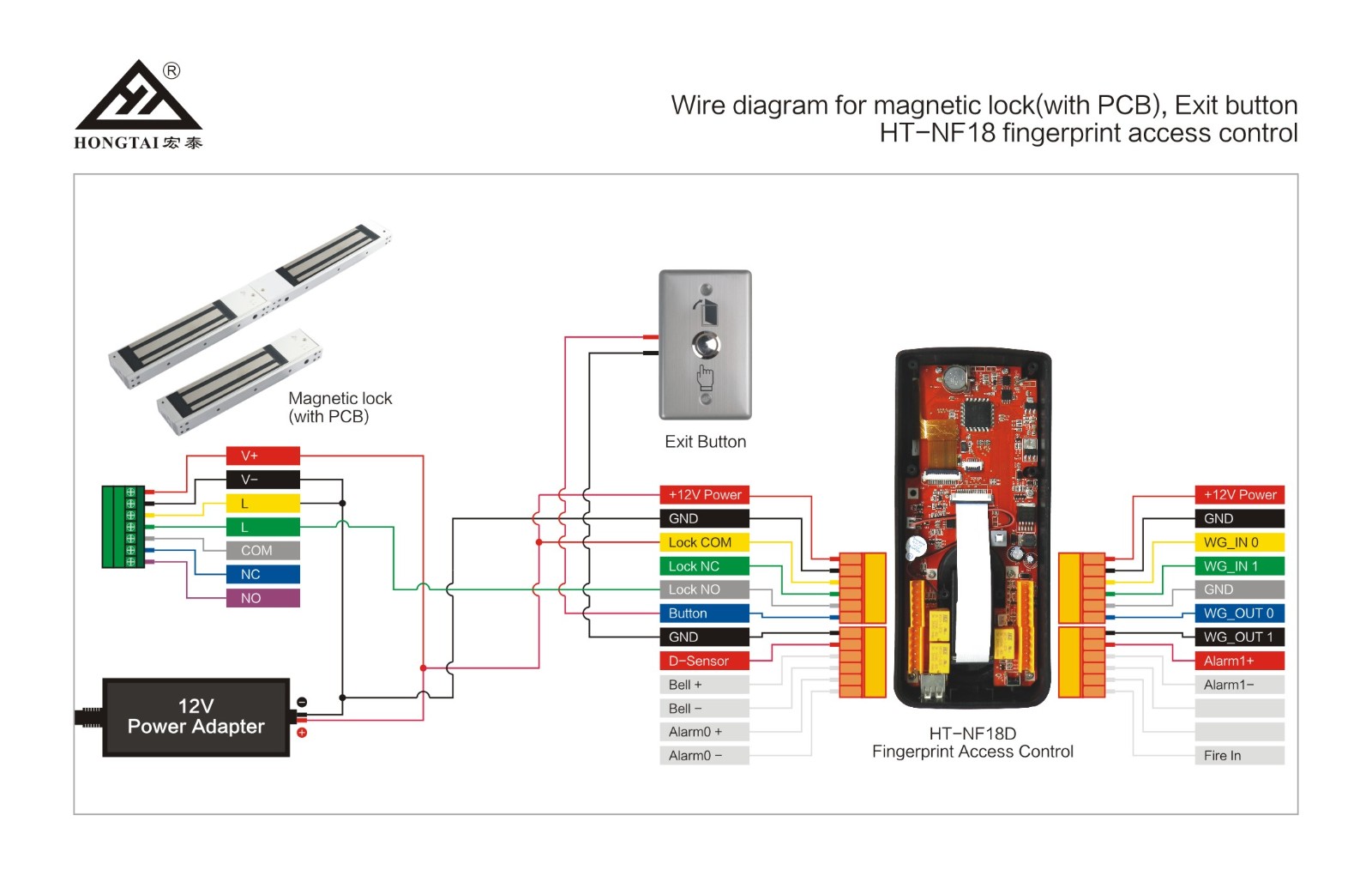

Wiring Diagram

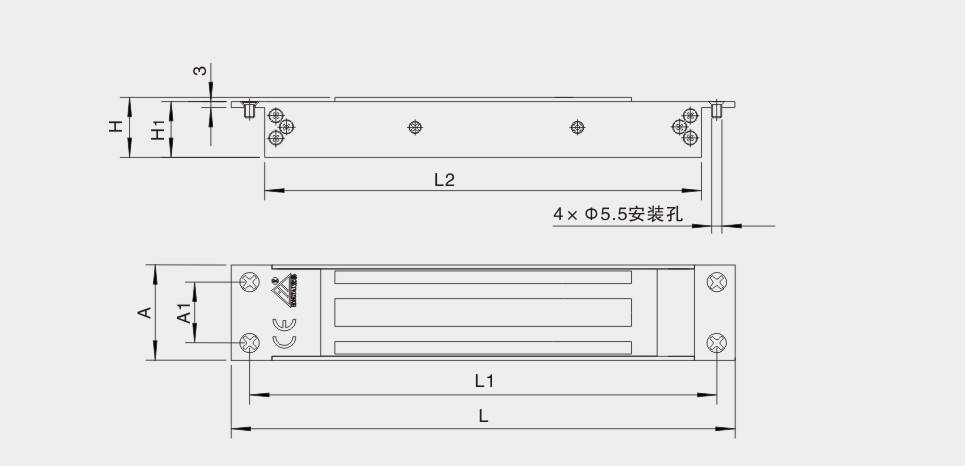

Installation Dimension Diagram


型号

DZ02Q

DZ02QS

DZ03Q

DZ03QS

DZ03QX

DZ03QY

DZ04Q

DZ05Q

DZ05QX

DZ05QY

L

201

367

248

456

281

278

281

314

L1

184

350

230

438

263

260

260

293

L2

166

332

208

416

241

238

231

264

A

35

35

47

47

47

47

65

65

A1

19

19

30

30

30

30

30

30

H

22.5

22.5

26

26

26

26

37

37

H1

21

21

24

24

24

24

35

35



型号

公斤级

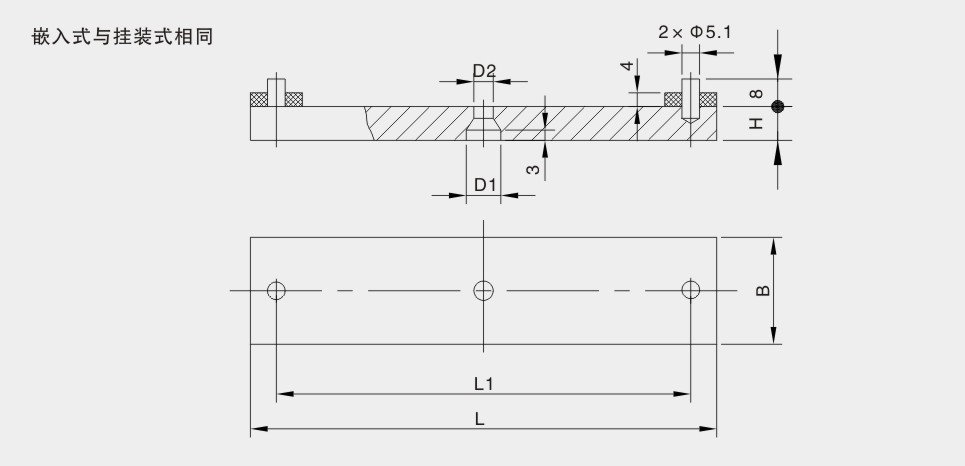

外形尺寸及安装尺寸

L

L1

B

H

D1

D2

DZ01

150kg

135

120

31

11

φ10

φ5.5

DZ02

150kg

135

120

31

11

φ10

φ5.5

DZ03

280kg

158

140

45

13

φ16

φ9

DZ04

350kg

180

160

45

13

φ16

φ9

DZ05

500kg

175

150

62

13

φ16

φ9

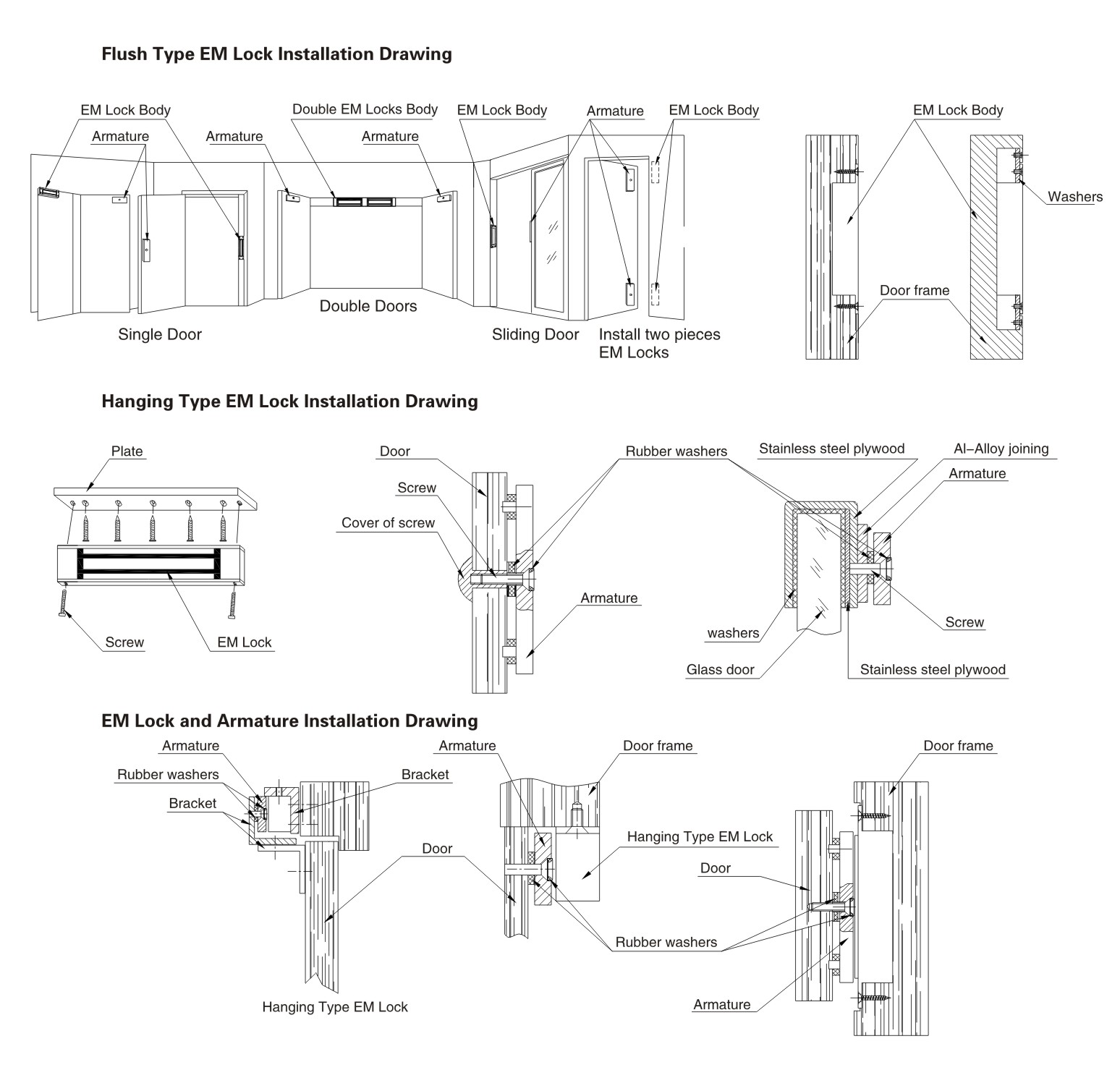

EM Lock Installation Reference Drawing


You can search for the product
you want here
