JGS2

Tel:+86-577-62517028
Email:htdz@chinahongtai.com
Skype:htdzlock

Specification Parameter

1. Working voltage: DC12V±10%;

2. Static working current30mA

3. Working current0.27A

4. When telecom cabinet lock receives unlocking signal,unlock and alarm with "di di di". It means unlocking successfully. Pls push the button which under cylinder, it will sprang open and alarm stop ;

5. If don't push the button will lock automatically after 6s;

6. With lock status feedback(passive);

7. Operation temperature range:-40~50;

8. Wire

Yellow: Lock status(passive); White: Unlocking signal; Light blue: Lock status(passive);

Black: Power supply 12V-; Red: Power supply 12V+

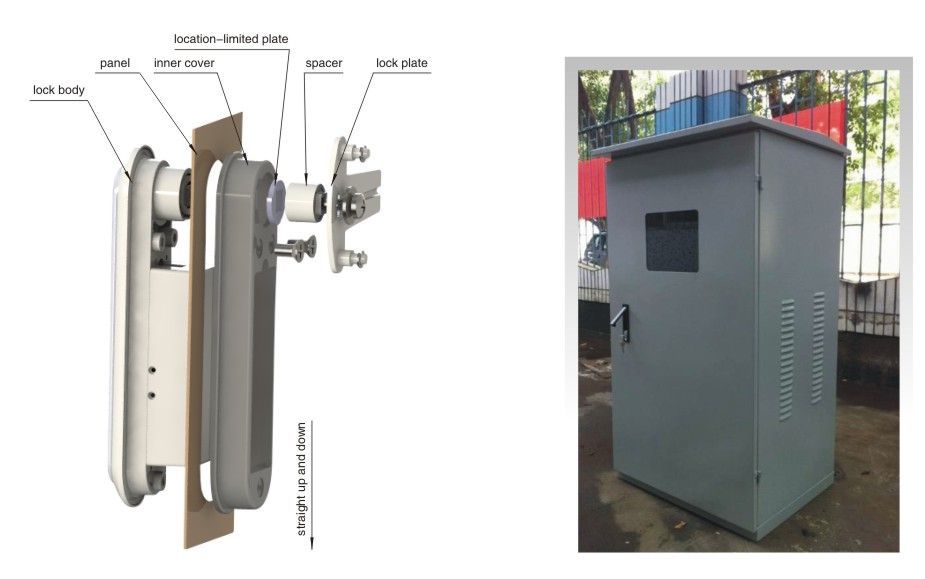

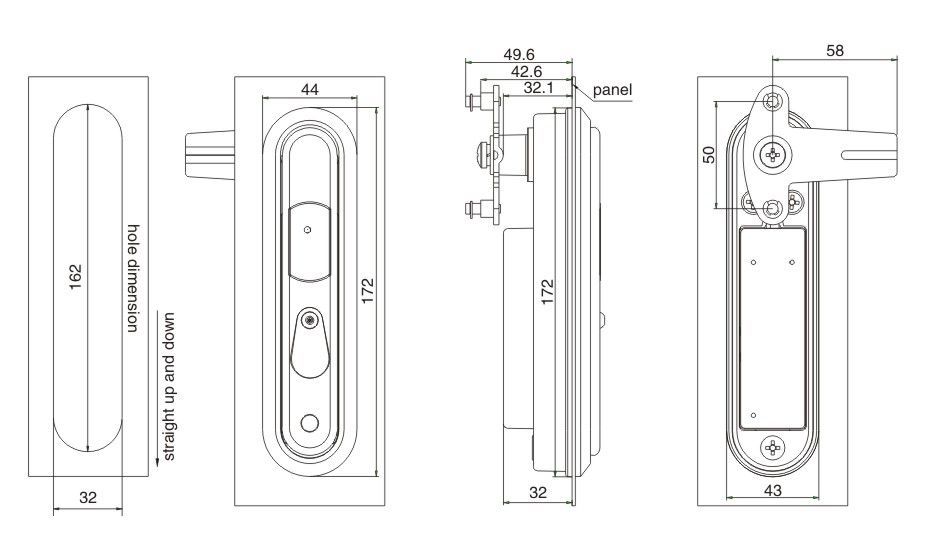

Installation & Dimension
