NI46DT

Tel:+86-577-62517028
Email:htdz@chinahongtai.com
Skype:htdzlock

Electric rim locks are specially designed for access control system and building conversational system.Using the most advanced machine design,latch direction interchange Open by electricity, pushbutton,swivel knob or key.Long lifetime,no power consumption when it is standby,high safety
This series locks are used for resident's house,specially for gate,government,school,hotel,factory warehouse

Technical Parameters
Voltage:DC12V±10%
Unlocking current:1.5~3A
Min Unlocking Power:10W
Coil ground insulation:DC500V
Energizing:discontinuous,energized7S
Unlocking time: 0.5S
Temperature:40℃~50
Static pressure:6000N
Service life:300,000 times

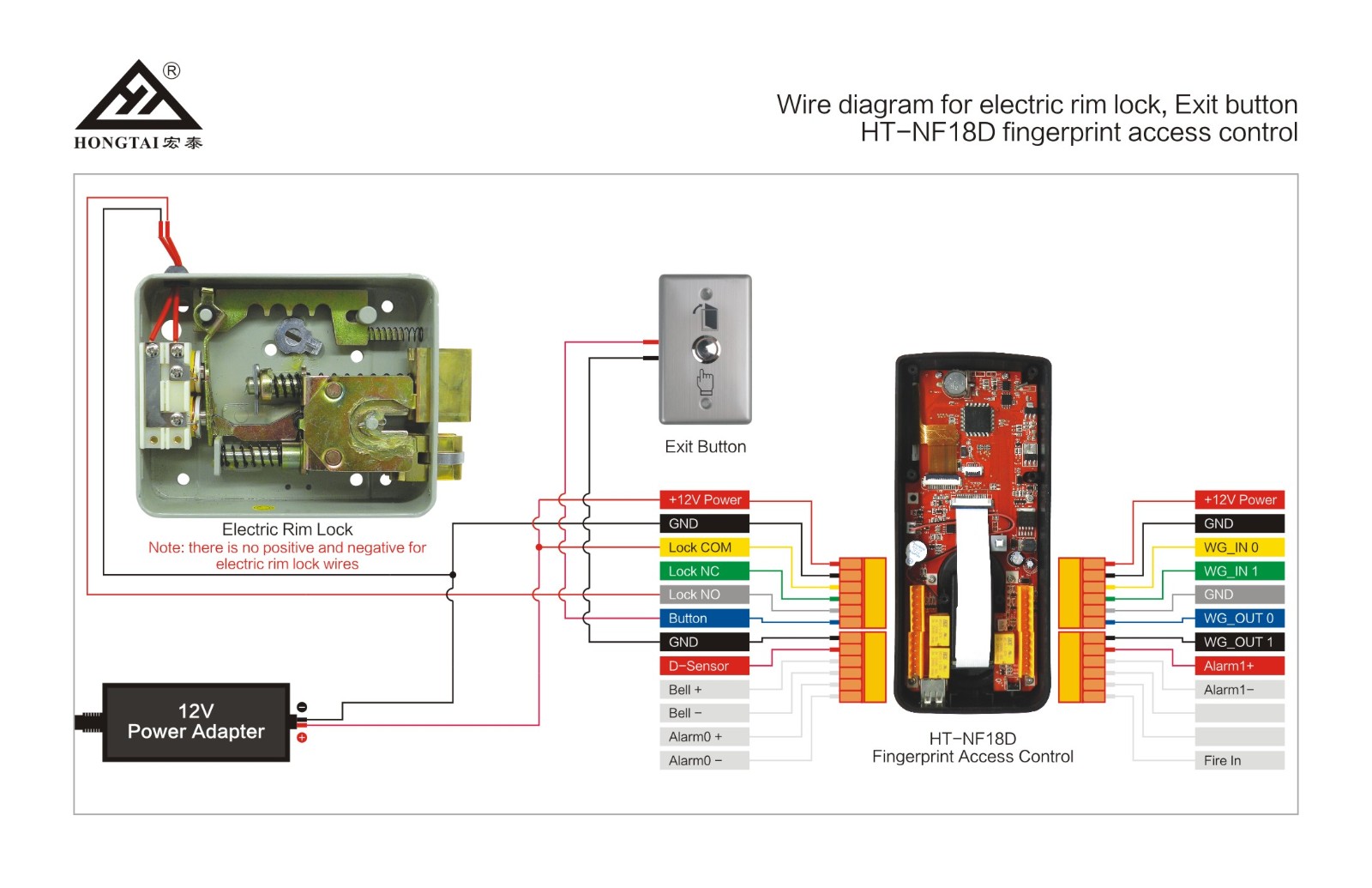

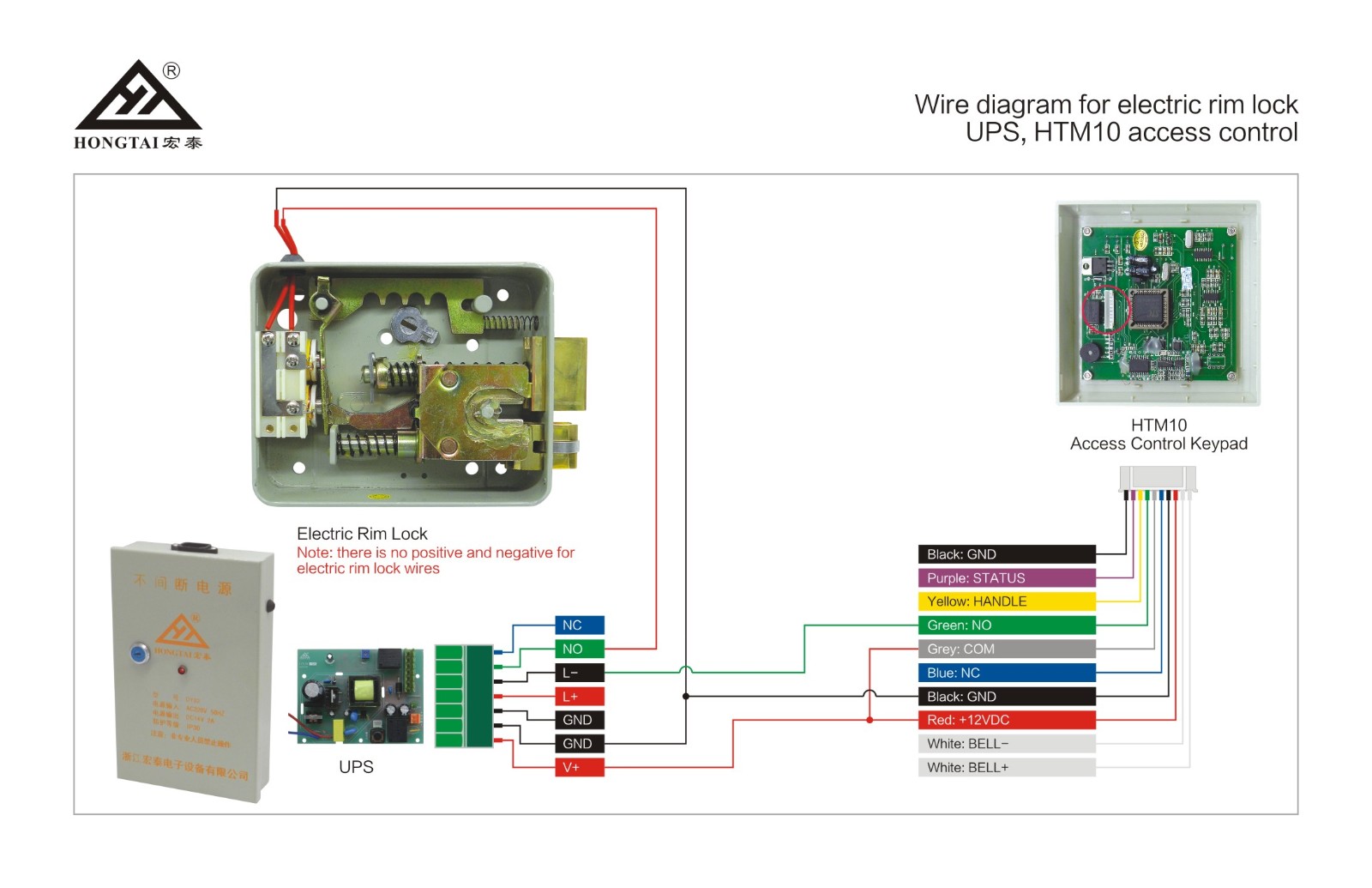

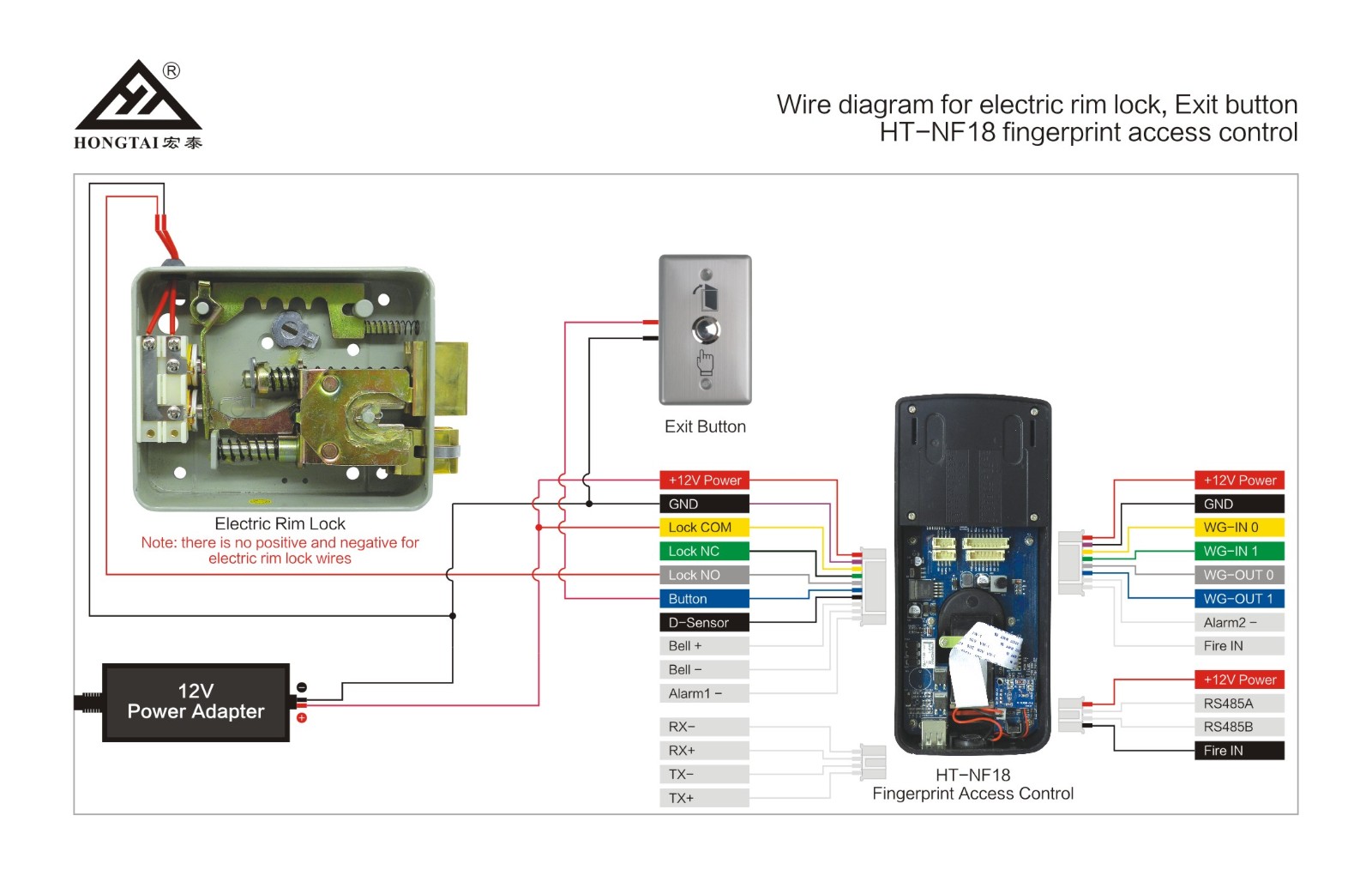

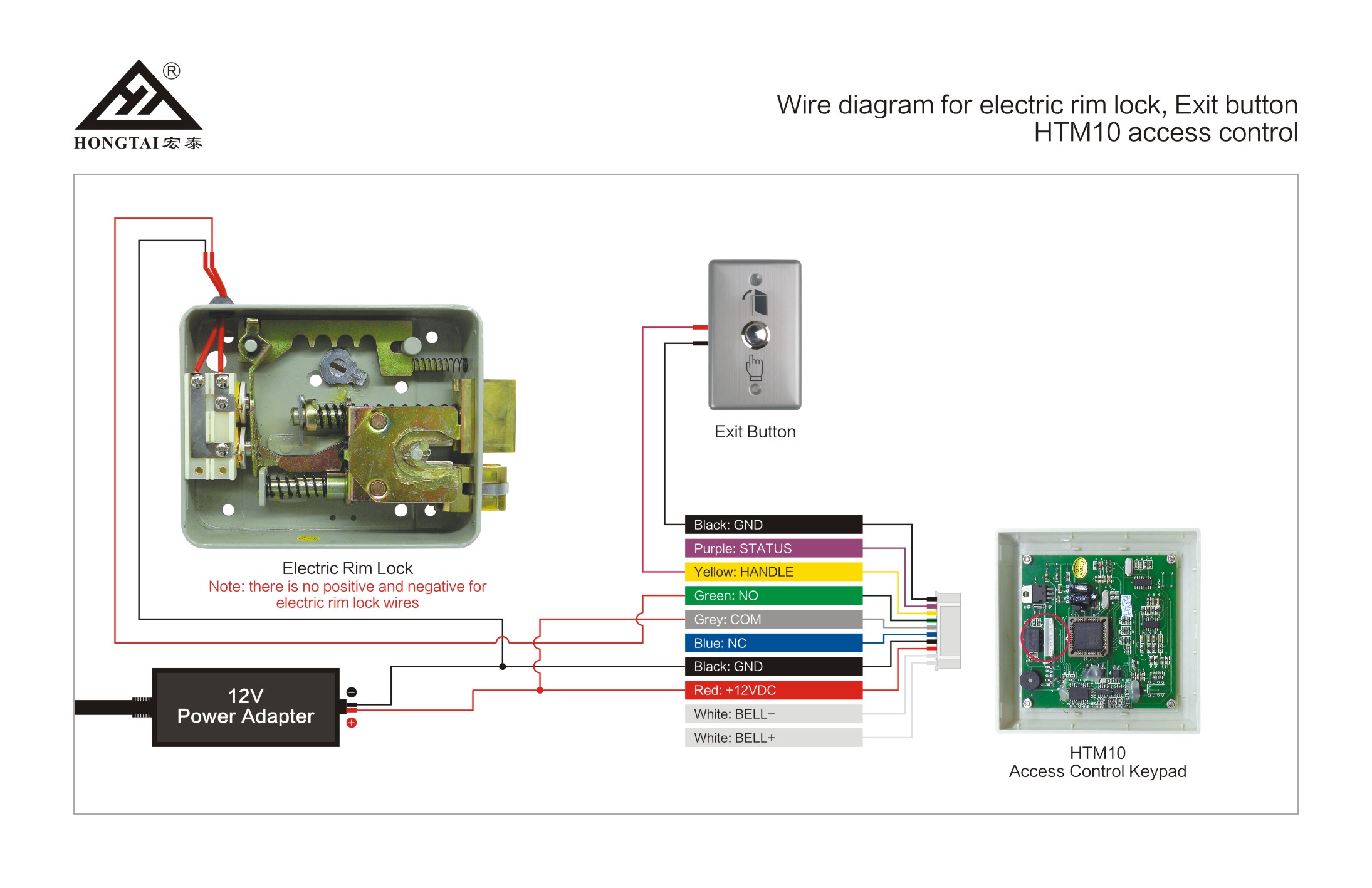

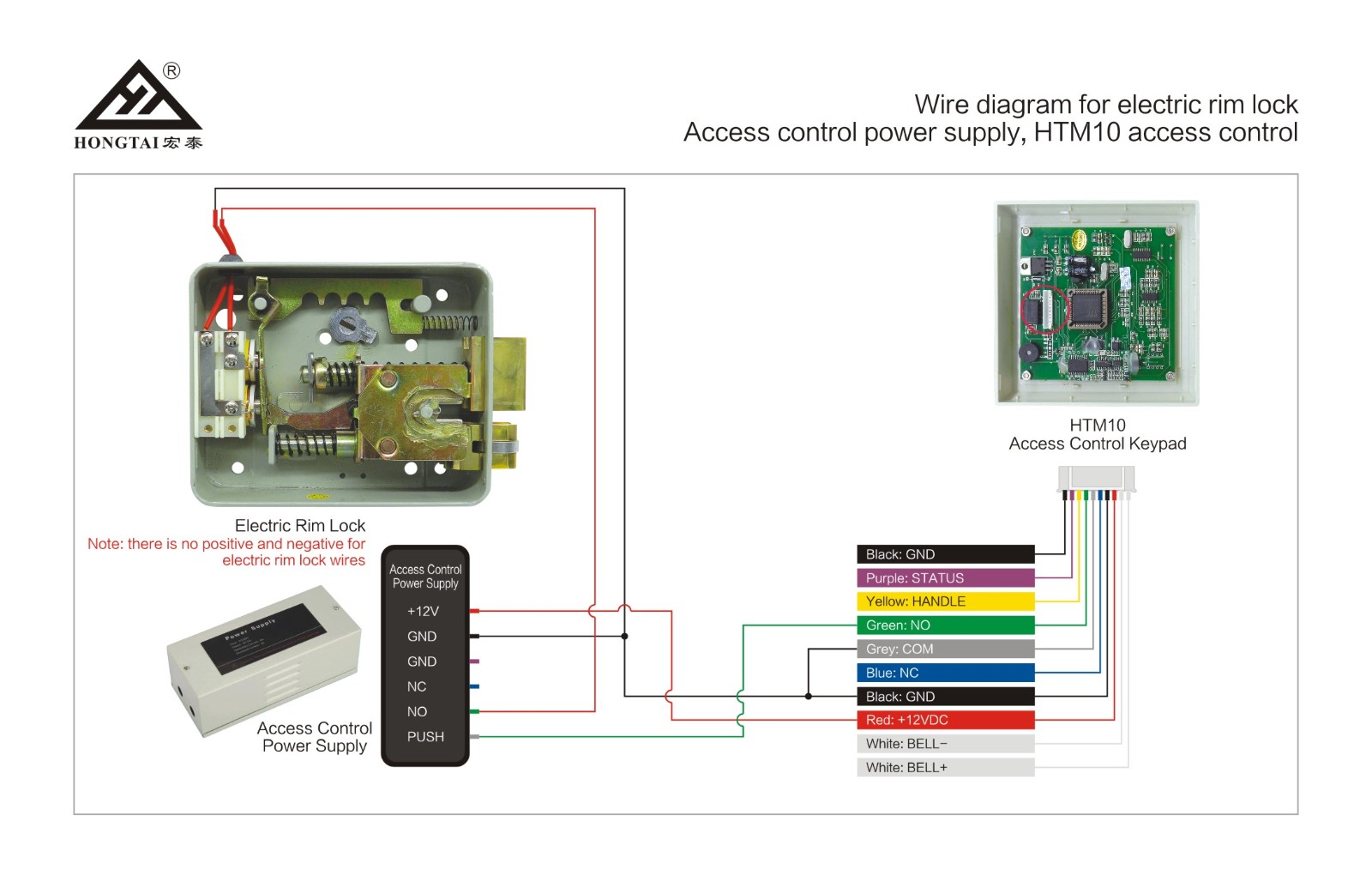

Wiring Diagram

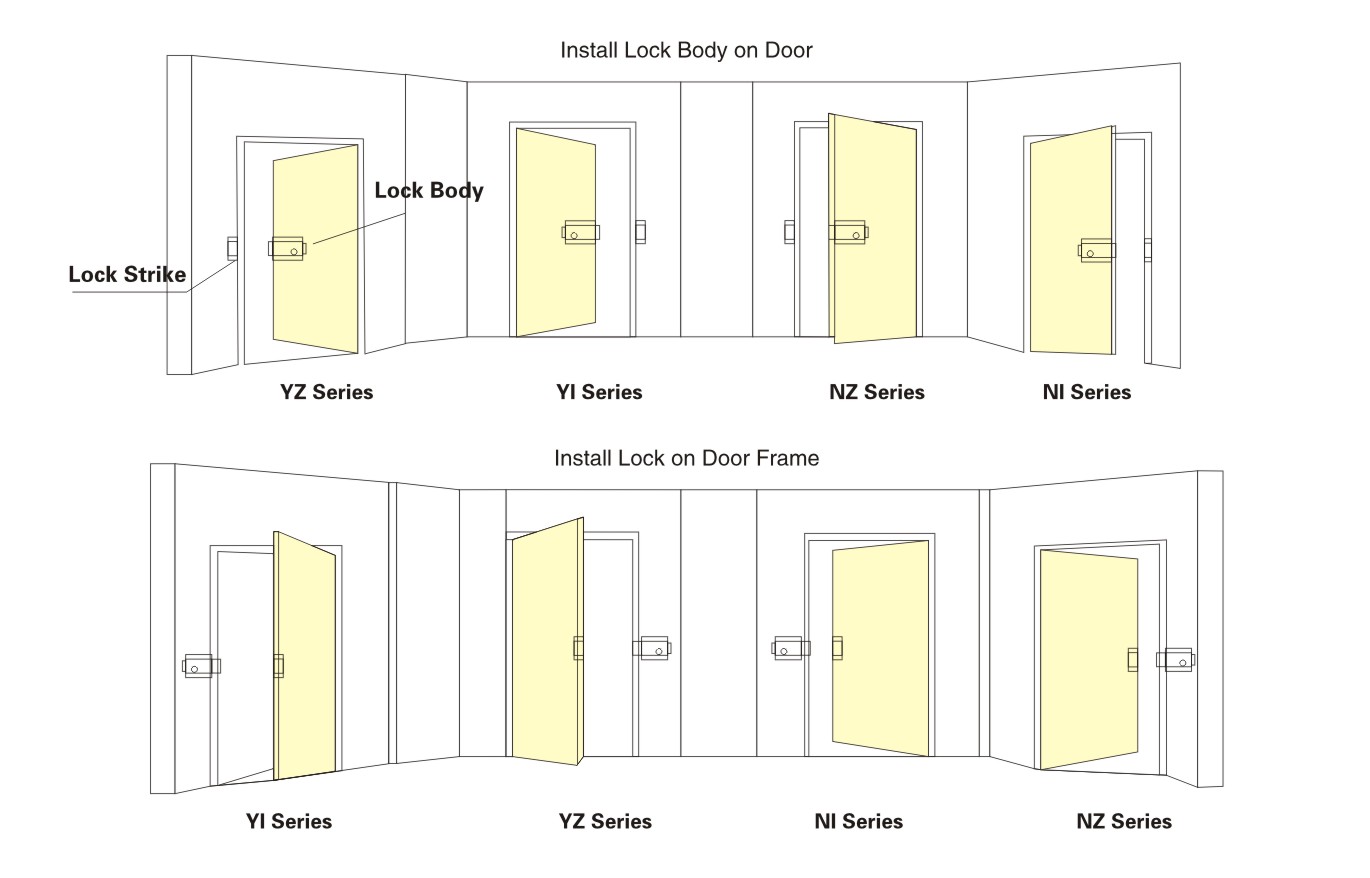

The explanation for electric rim lock code
Y-Outward opening door
N-Inward opening door
I-Right hand door
Z-Left hand door
5-Single cylinder
4-Double cylinders
6-Swivel knob
8-Pushbutton
DT-Titanium plating
U-Roller latch

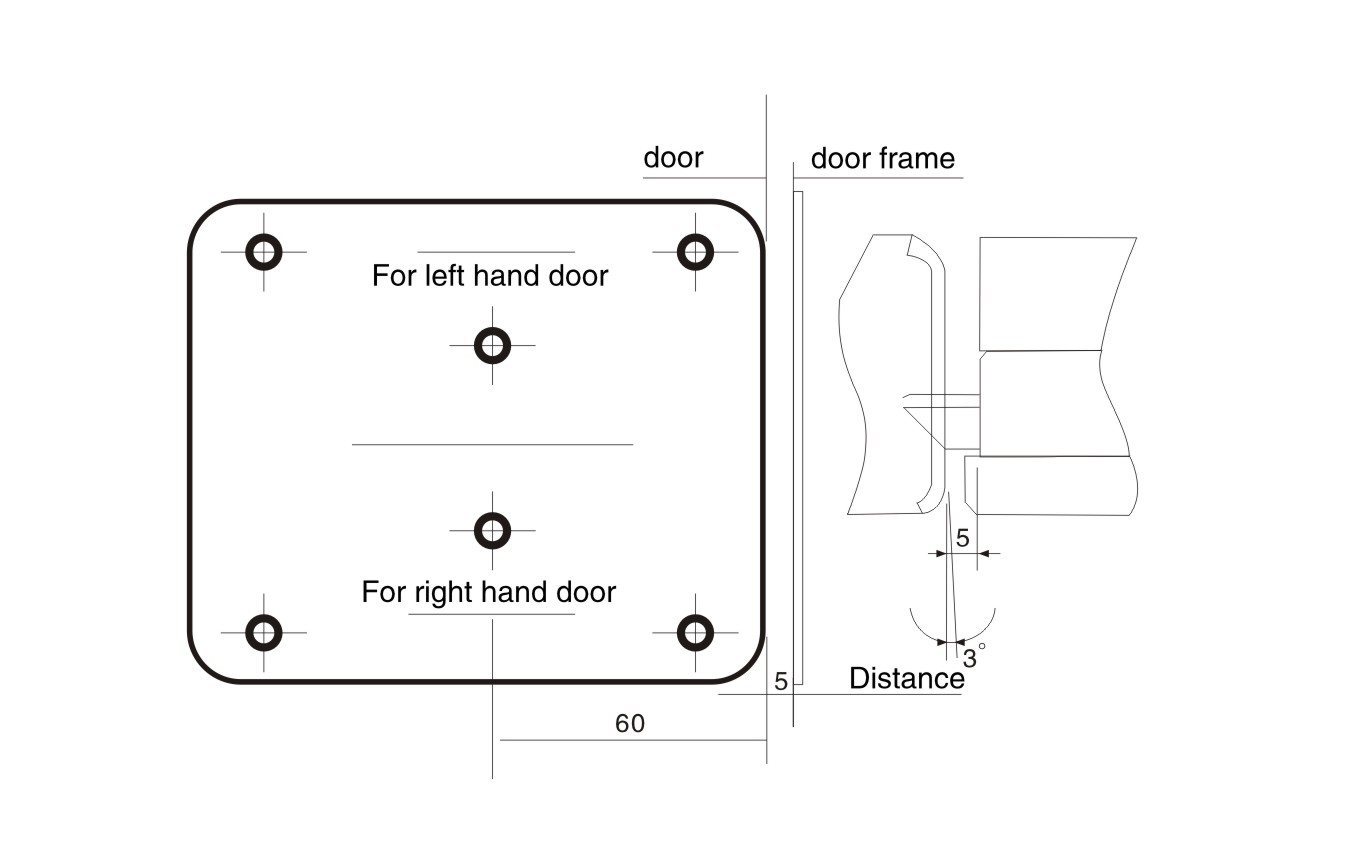

Installation Instruction
